Hydraulic Valve Blocks: Identify the Circuit Before Ordering
A hydraulic valve block sends pressurised oil to the lift, tilt and auxiliary functions. The casting can look familiar while the spool arrangement, port size, relief-valve setting or control method is different.
This page documents HELI reference G0625-43001. Compatibility is confirmed from the truck identity and hydraulic details, not from appearance alone.
Request valve block verification
Documented Hydraulic Valve Block Reference
The real product photo, brand and part number belong together. The card is an inquiry reference, not a claim that the valve block is interchangeable with another model.
Hydraulic Valve Block
Part No. G0625-43001Brand reference: HELIConfirm port layout, mounting points, controlled functions and truck information before quotation.
Ask about G0625-43001Product Overview and Reference Evidence
| Product | Hydraulic valve block |
|---|---|
| Part number | G0625-43001 |
| Brand reference | HELI forklift parts |
| System | forklift hydraulic system |
| Verification | Confirm truck model, hydraulic circuit, port layout and mounting details |
| Supply option | Stated clearly after reference and application review |

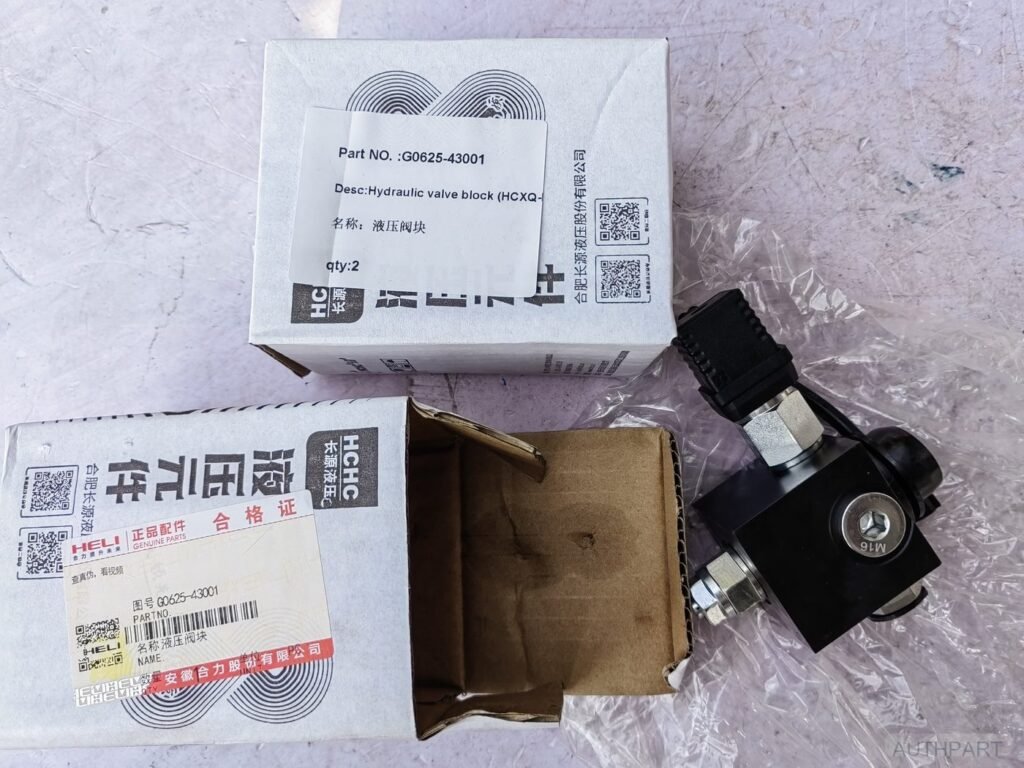

Reference evidence: The supplied photo shows the G0625-43001 label, HELI packaging and the valve block with its fittings. The image confirms the supplied reference only. Final compatibility is checked against the truck model, serial number and relevant connector, mounting or dimensional details.
From Hydraulic Fault to the Correct Valve Block
1. Confirm the symptom
Slow lift, drift, uneven tilt, overheating or a function that will not hold pressure may point to the valve block, but the pump, cylinder, hose or contaminated oil can create similar symptoms.
2. Isolate the circuit
Pressure readings and function tests help identify whether the fault is before the valve, inside a spool section or after the outlet port.
3. Identify the assembly
Check the part label, truck model and serial number, port positions, spool count, solenoids or mechanical linkage, relief-valve details and mounting pattern.
4. Choose the supply level
Use the original reference where hydraulic settings or interfaces are critical. A verified OEM alternative is considered only when its configuration and performance data can be checked.
Where It Sits and What It Controls
The main control valve is normally installed between the hydraulic pump and the lift, tilt and attachment circuits. A multi-section block may control several functions from one assembly.
Lift section
Controls oil to the lift cylinder and may include lowering control and load-holding features.
Tilt section
Directs oil to the tilt cylinders. Internal leakage may cause mast drift after the external cylinders and hoses have been checked.
Auxiliary section
Supplies side shifters, clamps or other attachments. Extra functions require the correct spool and port arrangement.
Service Checks Before Replacement
| Hydraulic oil and filter | Contamination can score spools and block small passages. Check oil condition and filtration before blaming the complete valve. |
|---|---|
| External leakage | Inspect seals, fittings and hoses. Replacing the whole block is unnecessary when the fault is confined to a serviceable external connection. |
| Internal leakage | Pressure decay or cylinder drift requires circuit diagnosis. The cylinder seals and load-holding valves must also be considered. |
| Control operation | Check linkage travel, solenoid voltage, coil resistance and connector condition according to the valve design. |
| Relief pressure | Use the truck service specification. An incorrect adjustment can damage the pump, hoses, cylinders and attachment. |
There is no universal replacement interval for a hydraulic valve block. Inspection follows service symptoms, oil contamination, leakage and the truck manufacturer’s maintenance schedule.
Original or OEM: What Changes the Decision?
Original part
Preferred when the truck configuration, relief setting, special spool function or electronic control needs the factory reference.
Verified OEM option
Can be practical when port layout, spool functions, pressure rating, interfaces and production quality are documented.
Price comparison
A meaningful comparison must cover the complete valve configuration and supplied fittings. Market prices vary by brand, number of sections, control method and whether the assembly is complete; an unsupported price range would be misleading.
Information Needed for a Reliable Quotation
Send the forklift brand, model and serial number; old valve label; overall and port-side photos; spool count; controlled functions; mounting points and required quantity.
