Forklift BMS Selection & Common BMS Architectures
Identify the architecture and the battery configuration before comparing BMS units. Pack voltage, cell-monitoring channels and the BMS auxiliary supply are different specifications.
A640 all-in-one BMS, material code P04.07.001.00547. Match the full label, connectors and battery configuration.
Read the whole label, including the material code

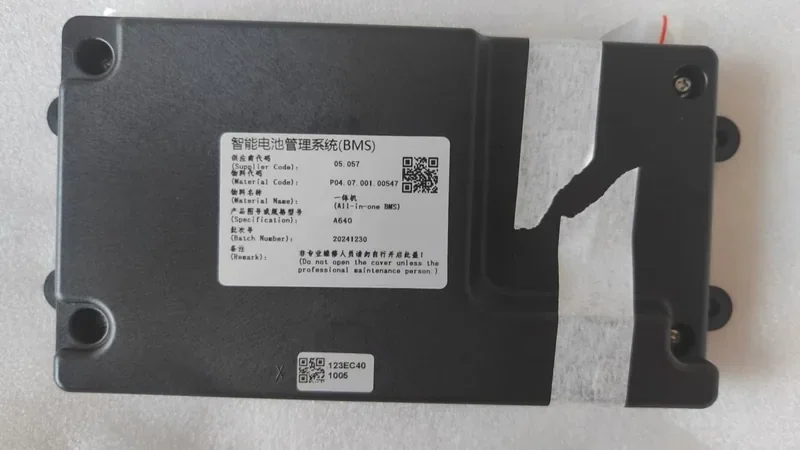

This A640 label states “All-in-one BMS” and material code P04.07.001.00547. Those are useful identifiers. The photo does not establish cell count, chemistry, charge-current limits, CAN messages or forklift fit.
A535-D has a different material code, P04.07.001.00008. A similar enclosure does not make these units interchangeable.
A640: reference identity from the supplied label.
Centralized, integrated and distributed systems
| Example / architecture | Monitoring and communication | Selection boundary |
|---|---|---|
| Orion BMS 2 — centralized | Up to 180 series cells per main unit, in 12-cell increments; two CAN 2.0B interfaces | Choose exact channel configuration, current sensor, temperature inputs and battery settings. Cell count is not nominal pack voltage. |
| Sensata / Lithium Balance c-BMS24X — integrated | Up to 24 series cells; six temperature inputs and one CAN interface | Battery chemistry, sensors, contactor interfaces and charger communication remain configuration-specific. |
| Sensata / Lithium Balance s-BMS — distributed | BMCU master and LMU local-monitor units; internal RS485 and external CAN | Compare master/slave identities, cell-group harnesses, firmware and configuration together. Do not treat internal and vehicle networks as the same bus. |
Connections that must agree
| Relationship | Information to obtain | Do not infer |
|---|---|---|
| Cells and BMS | Chemistry, series count, sensing harness, temperature sensors and current sensor | A generic “lithium” description does not identify the cell limits |
| BMS and charger | Approved protocol, charge-enable logic and current/voltage limits | CAN wiring alone does not establish a supported charger |
| BMS and truck | Vehicle interface, discharge limits, contactor/precharge arrangement and software version | A matching connector does not confirm vehicle messages |
| BMS and display | SOC communication, alarms, software and auxiliary supply | A displayed percentage does not prove the replacement is correctly configured |
Keep package references as supporting evidence
The packaging identifies A.06.01.0061; BMS-CBD25J-RLI is supporting reference information. No battery chemistry, current rating or serial-range compatibility is inferred from this package.
Send the old BMS label and battery nameplate together. Qualified service records can identify the installed software and battery configuration without opening a live pack.
Package reference evidence, not a verified compatibility list.
Before ordering a replacement BMS
- Obtain complete BMS and battery identifiers; photograph externally accessible labels and connector faces.
- Confirm whether replacement requires parameter transfer, firmware matching or commissioning. A blank/configurable unit is not a configured replacement.
- Keep current sensors, thermistors, harnesses and displays in the request where their part references are known. They are not automatically included.
- A fault message is not proof that the BMS itself has failed. Do not bypass battery protection or open an energized pack to collect information.
No confirmed part number?
If the BMS label is unclear, send the battery nameplate, accessible connector photos and any service record through Find My Part. The battery configuration still needs to be checked before selecting a replacement.
